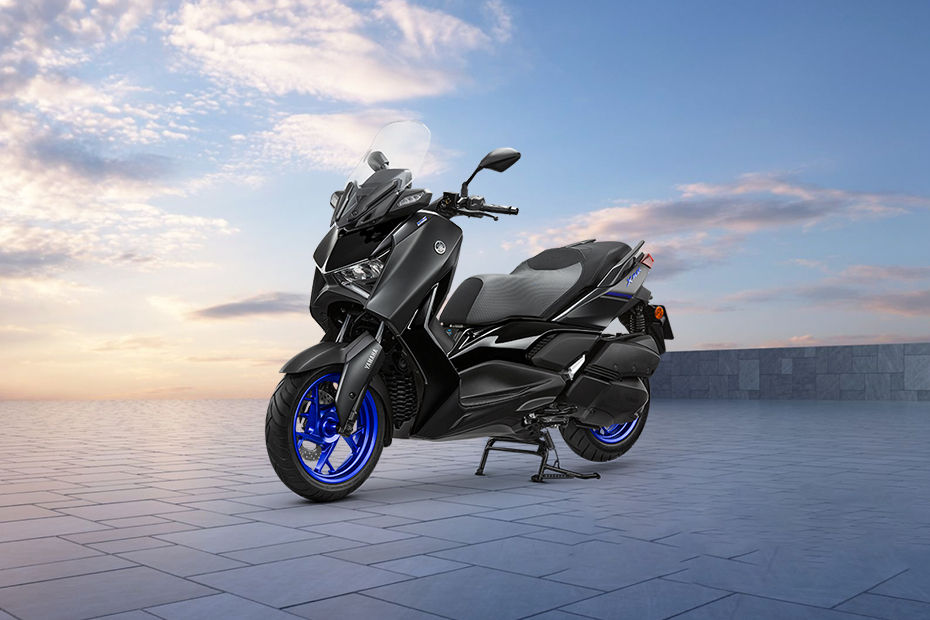

Yamaha Xmax Connected Standard 2024 Motorcycle
The Yamaha Xmax Connected Standard price in the Thailand starts at ฿191,100 . The Xmax Connected Standard is powered by a 292 cc engine, and has a Variable Speed gearbox. The Yamaha Xmax Connected Standard has a seating height of 795 mm and kerb weight of 181 kg. The Xmax Connected Standard comes with Disc front brakes and Disc rear brakes.
Read MoreXmax Connected Standard Specs
| Start Option |
Petrol Electric
|
| Front Brake |
Petrol Disc
|
| Category |
Petrol Scooter
|
| Engine |
Petrol 292 cc
|
| Maximum Power |
Petrol 22.5 bhp
|
Yamaha Xmax Connected Standard Key Highlights
The Yamaha Xmax Connected Standard is a Petrol CVT variant of the Yamaha Xmax Connected lineup. Checkout Yamaha Xmax Connected Standard Price in the Thailand. View Xmax Connected Standard Latest Promos, Colors, Review, Images and more at Zigwheels.
Read More
Yamaha Xmax Connected Standard Engine Details
Xmax Connected Standard variant is powered by a 292 cc Petrol Engine with Fuel Injection system, It has a Single Cylinder, 4-Stroke, 4-Valve, Liquid Cooled, SOHC.
Yamaha Xmax Connected Standard Transmission
Xmax Connected Standard is paired with a Variable Speed CVT transmission.
Xmax Connected Standard Performance
Xmax Connected Standard 292 cc engine offers 22.5 bhp of power and 24.3 Nm of torque.
Xmax Connected Standard Technical Specifications
- Engine & Performance
- Electrical
- Fuel & Ignition
- Chassis & Suspension
- Dimension
- Wheels & Tyres
- Gear & Transmission
- Exhuast Pipes Single Exhaust
- No. Of Strokes 4-Stroke
- Injection Type Indirect Injection
- Clutch Type Centrifugal Clutch, Dry
- Valves Per Cylinder 4
- No. Of Cylinder 1
- Valve Configuration SOHC
- Bore X Stroke 70 mm x 75.9 mm
- Engine Type Single Cylinder, 4-Stroke, 4-Valve, Liquid Cooled, SOHC
- Drive Type Belt Drive
- Cooling System Liquid Cooled
- Lubrication System Wet Sump
- Compression Ratio 10.9:1
- Displacement 292 cc
- Maximum Power 22.5 bhp
- Maximum Torque 24.3 Nm
- RPM at Maximum Torque 5500 rpm
- RPM at Maximum Power 7000 rpm
- Tail Lamp LED
- Indicator Light Yes
- Accessory Outlet Yes
- Head Lamp LED
- Adjustable Headlights Yes
- Battery Voltage 12 V
- Fuel Supply System Fuel Injection
- Ignition Type TCI
- Fuel Type Gasoline
- Start Option Electric
- Rear Suspension Unit swing
- Body Frame Type Backbone
- Seat Type Dual Stepped
- Front Suspension Telescopic Fork
- Body Frame Material Steel
- Height 1460 mm
- Length 2180 mm
- Curb Weight 181 kg
- Wheelbase 1540 mm
- Width 795 mm
- Oil Tank Capacity 1.7 L
- Seating Capacity 2
- Category Scooter
- Ground Clearance 135 mm
- Seat Height 795 mm
- Rear Wheel Size R14
- Front Wheel Size R15
- Rear Tyre 140/70 R14
- Tyre Type Radial, Tubeless
- Front Tyre 120/70 R15
- Transmission Type CVT
- Gear Box Variable Speed
Xmax Connected Standard Features
- Safety & Security
- Console
- Brake
- Side Reflectors Yes
- Engine Immobilizer No
- Back Rest No
- ABS Yes
- Leg Guards No
- Pass Switch Yes
- Launch Control No
- Engine Check Warning Yes
- Side Stand Indicator Yes
- Navigator Yes
- Speedometer Digital
- Odometer Digital
- Display Screen Yes
- Tachometer Digital
- Fuel Gauge Digital
- Tripmeter Yes
- Front Brake Disc
- Rear Brake Disc
Compare Xmax Connected Standard with other Variants
- Petrol
Compare Xmax Connected Standard With Similar Bikes
|
|
Engine
292
|
|
Maximum Power
22.5
|
|
Start Option
Electric
|
|
Category
Scooter
|
|
Front Brake
Disc
|
|
|
Gallery of Xmax Connected Standard
- exterior
- color
Yamaha Xmax Connected Standard Exterior Images
Yamaha Xmax Connected has 10 images of its exterior, top Yamaha Xmax Connected 2024 exterior images include Slant Front View Full Image, Front View Full Image, Slant Rear View Full Image, Rear Viewfull Image, Left Side View Full Image, Right Side Viewfull Image, Console View, Front Tyre, Back Side View, Slant Back Side View Right.
Read More
Yamaha Xmax Connected Standard Colors
Yamaha Xmax Connected is available in 4 different colors - Midnight Black Metallic, Red, Gray, Ice White.
